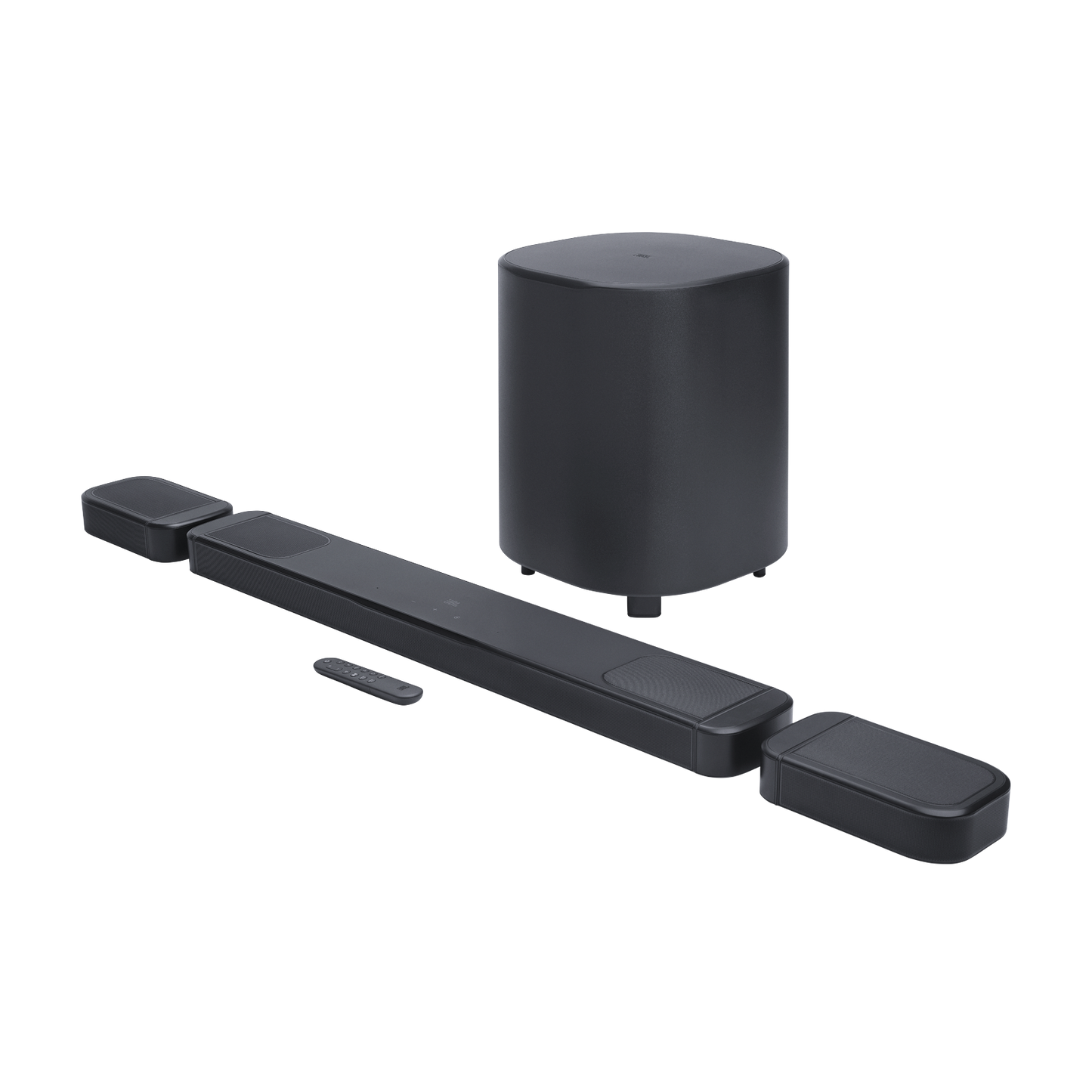

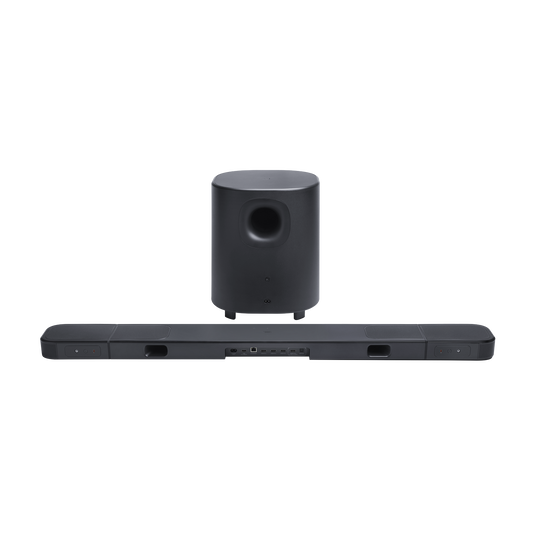

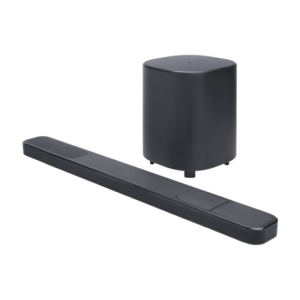

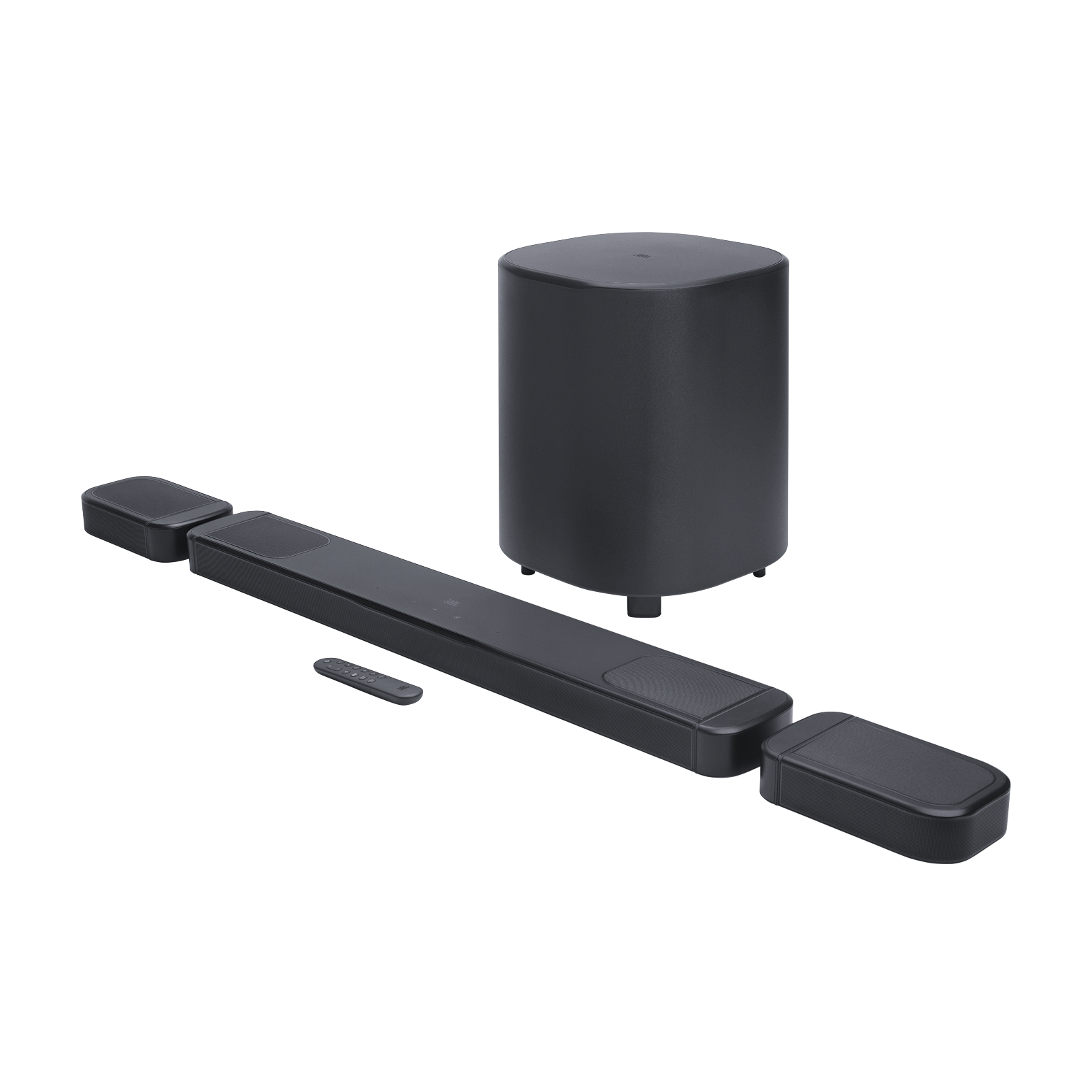

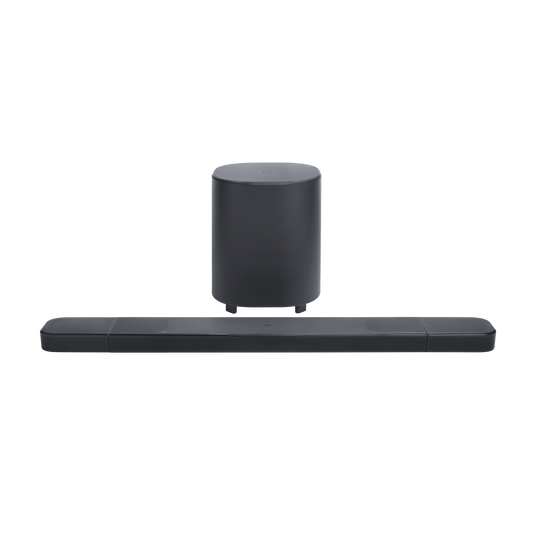

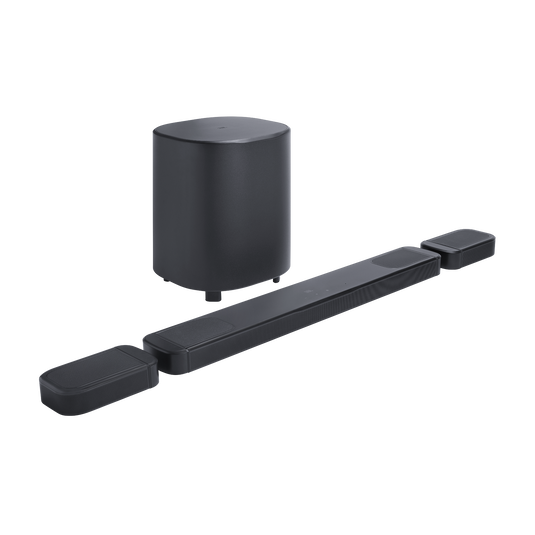

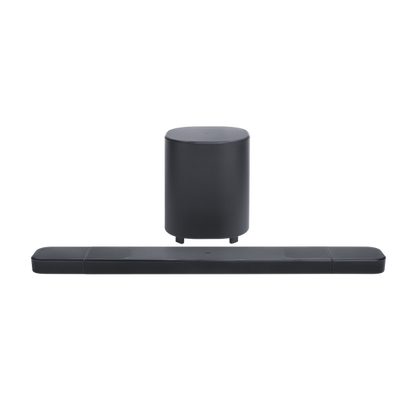

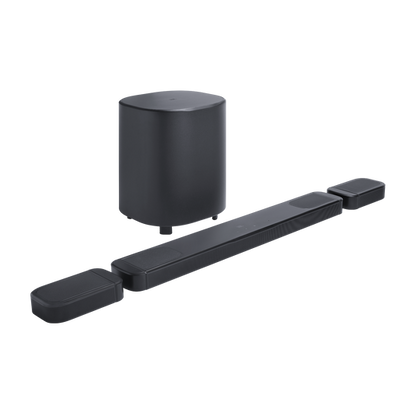

The JBL Bar 1000 delivers the ultimate cinematic 3D home theater experience, combining detachable wireless surround speakers, up-firing height drivers, and a massive 10-inch subwoofer for true 7.1.4-channel spatial audio without any trailing wires.
Key Features:
-

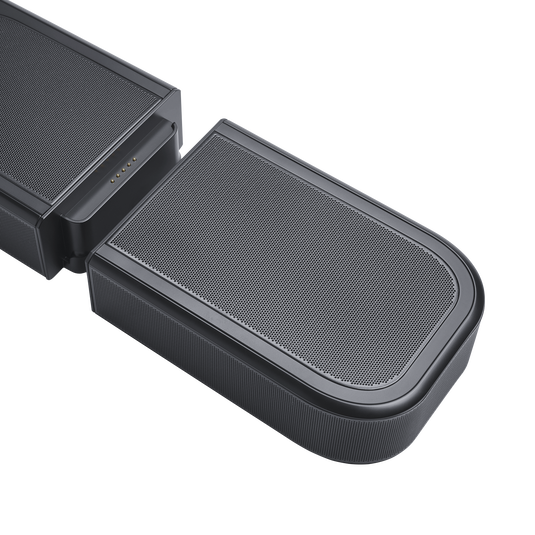

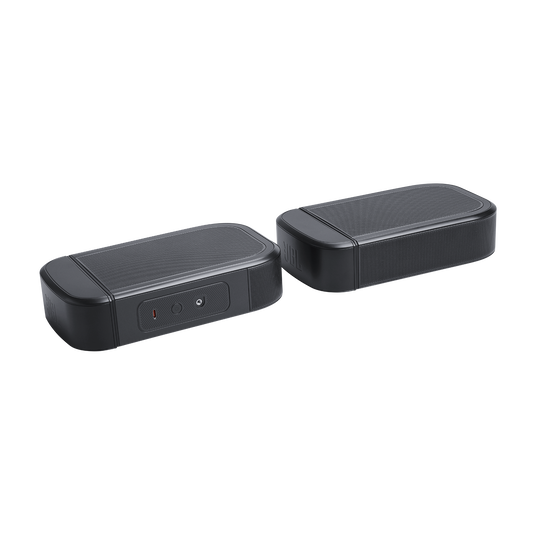

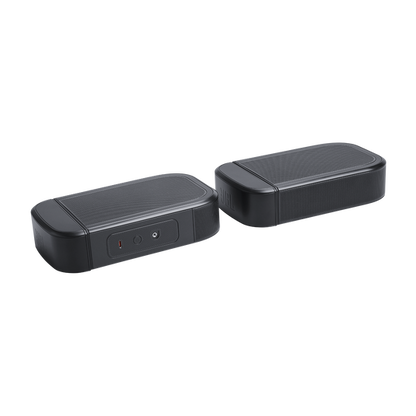

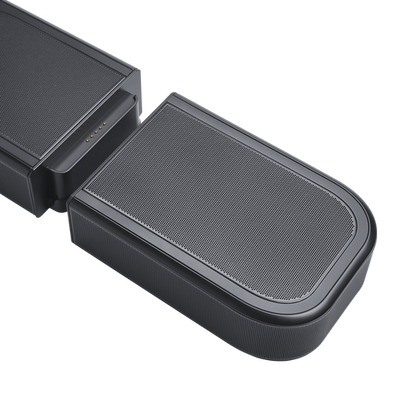

7.1.4 Channel True Surround Sound: Detachable, battery-powered rear speakers combined with up-firing drivers create a fully immersive 3D spatial soundstage.
-
Dolby Atmos® & DTS:X®: Native decoding for height-channel audio that places sound effects overhead and all around your room.
-
10″ Wireless Subwoofer: Delivers deep, thunderous bass that brings movies, gaming, and sports to life.
-
MultiBeam™ & PureVoice Technology: Bounces sound around the room for a wider soundstage while keeping dialogue crystal clear during high-action scenes.
-
High-Power Output: Fills large living spaces with dynamic, high-volume performance.
-
Seamless Connectivity: Features HDMI eARC with 4K Dolby Vision passthrough, Bluetooth, and Wi-Fi streaming with native support for Apple AirPlay, Chromecast built-in™, and Alexa Multi-Room Music.
Technical Specifications
Audio & Power Output
| Feature |
Specification |
| Sound System |
7.1.4 Channel |
| Total Output Power |
960W RMS (Max @ THD 1%) |
| Soundbar Output Power |
500W |
| Surround Speaker Output Power |
2 × 80W |
| Subwoofer Output Power |
300W |
| Frequency Response |
33 Hz – 20 kHz (-6 dB) |
Speaker Drivers
| Component |
Driver Specifications |
| Soundbar Drivers |
6× racetrack (44×80mm), 2× 1″ tweeters, 2× 2.75″ up-firing full-range |
| Surround Speaker Drivers |
2× racetrack (44×90mm), 2× 2.75″ up-firing full-range |
| Subwoofer Driver |
10″ (260mm) |

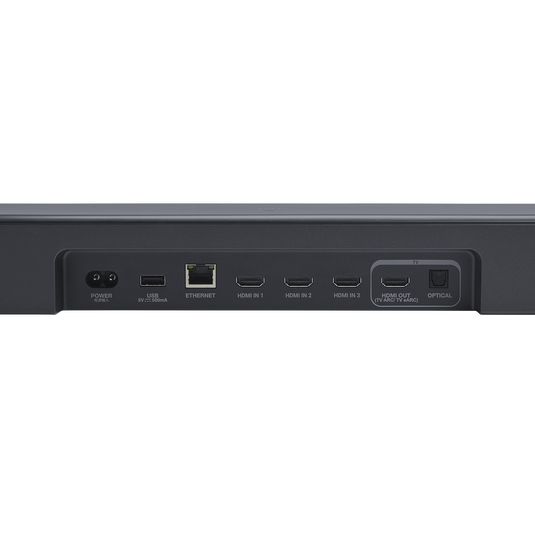

Connectivity & Video Pass-Through
| Connection |
Details |

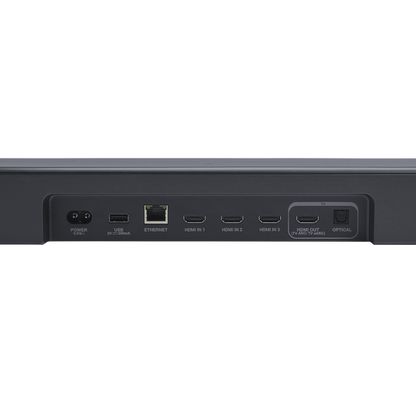

| HDMI Inputs / Output |
3 HDMI Inputs / 1 HDMI Output (eARC) |
| HDCP Version |
2.3 |
| Video & HDR Support |
4K HDR, HDR10+, Dolby Vision |
| Wireless Connectivity |
Bluetooth v5.3 (A2DP v1.3, AVRCP v1.5), Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax 2.4GHz/5GHz) |
| Audio Inputs |
Optical, Bluetooth, USB (service only in some regions) |
| USB Port |
Type A (5V DC, 0.5A) |
| Supported Audio Formats |
MP3 (MPEG 1/2/2.5 Layer 2/3, 80–320 kbps, 16–48 kHz) |
Battery & Electrical Specifications
| Feature |
Specification |
| Power Supply |
100 – 240V AC, 50/60Hz |
| Network Standby Power |
< 2.0W |
| Operating Temperature |
0°C – 45°C |
| Detachable Speaker Battery |
3.635V, 6600mAh |
| Detachable Speaker Playtime |
Up to 10 hours |
Dimensions & Weight
| Item |
Dimensions (W × H × D) / Weight |
| Soundbar Dimensions |
854 × 52 × 128 mm |
| Total Soundbar System Dimensions |
1203 × 52 × 128 mm |
| Surround Speaker Dimensions (Each) |
189 × 52 × 128 mm |
| Subwoofer Dimensions |
325 × 400 × 325 mm |
| Soundbar Weight |
5.5 kg (12.1 lbs) |
| Surround Speaker Weight (Each) |
0.9 kg (2 lbs) |
| Subwoofer Weight |
9.1 kg (20 lbs) |
| Packaging Weight |
22.6 kg (EMEA/UK/AU/NZ), 19.9 kg (Others) |
